Product information

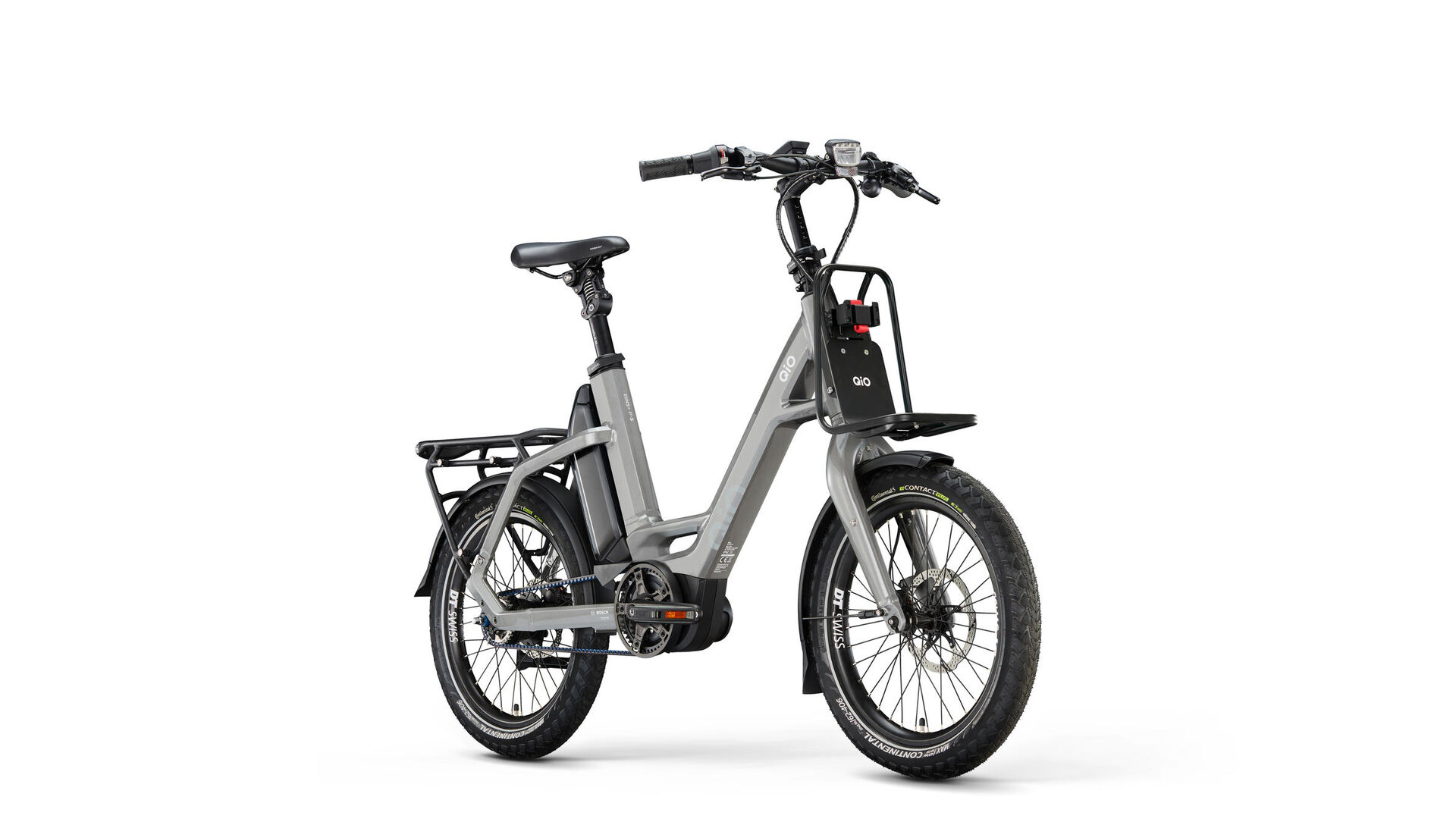

"EINS+ P-5 unisex "
The QiO "EINS+ P-5" offers you state-of-the-art technology and user-friendliness in an elegant design. With enhanced functions and improved performance, it is the ideal choice for anyone who values quality and reliability. The compact e-bike impresses with a maximum possible rider weight of 150 kg and a permissible total load of 180 kg. Thanks to the Gates CDX Straps, the e-bike is virtually maintenance-free, making it ideal for every day and relaxed tours.
Experience faster and smoother use thanks to the latest processors and optimized software. Enjoy more independence with the Bosch "Performance Line" engine and a longer battery life thanks to the 800 Wh power pack. The intuitive Interface and ergonomic design make operation easy and pleasant. The "Fron Rack BEN" Carrier is already integrated as standard and tastefully rounds off the functionality.
Experience faster and smoother use thanks to the latest processors and optimized software. Enjoy more independence with the Bosch "Performance Line" engine and a longer battery life thanks to the 800 Wh power pack. The intuitive Interface and ergonomic design make operation easy and pleasant. The "Fron Rack BEN" Carrier is already integrated as standard and tastefully rounds off the functionality.
Specifications "QIO EINS+ P-5 unisex (2025)"
| Frame: | QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, lead metal glossy |
| Dropout: | QIO Slider Dropout |
| Fork: | QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, light olive matt |
| Headset: | TOKEN "TK255E-HJ04", IS52/40 / IS52/44 |
| Crank arm: | Stronglight "Magan 3B", 170 mm |
| Chain ring / belt ring: | GATES "CDX", 46 teeth, belt line 45.5 mm |
| Bottom Bracket: | BOSCH |
| Bremse V.R.: | TRP "C1.8 HD-EU817", Post Mount |
| Bremse H.R.: | TRP "C1.8 HD-EU817" |
| Brake lever: | TRP HD-EU817 |
| Front rotor: | TRP "TR-25", Ø 180 mm, Centerlock |
| Rear rotor: | TRP "TR-25", Ø 160 mm, Centerlock |
| Shifting lever: | SHIMANO "Nexus SL-C7000-5" |
| Cassette / belt sprocket: | GATES "CDX", 28 teeth |
| Chain / belt: | GATES "CDX" |
| Drive unit: | BOSCH "Performance Line" engine, max. 75 Nm |
| Battery: | BOSCH "Active Line Plus", max. 50 Nm |
| Charger: | BOSCH 4 A |
| Remote: | BOSCH "BRC3600", LED Remote |
| Display: | BOSCH "Kiox 300", 4-stages, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | DT SWISS "U 663", 36 hole, eyeletted, tubeless ready |
| Spokes: | DT-Swiss ELEMENTAL, schwarz |
| Front hub: | URSUS "RD30", Center Lock, QR |
| Rear hub: | SHIMANO "Nexus SG-C7000-5D", 5-speed, Center Lock |
| Front tires: | CONTINENTAL "eContact Plus", 62-406, Reflex |
| Rear tires: | CONTINENTAL "eContact Plus", 62-406, Reflex |
| Handle bar: | ergotec "Lady Town", 650 mm, Ø 31.8 mm, 30° backsweep |
| Stem: | BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black |
| Grips: | HERRMANS "Nucore Town", wave |
| Saddle: | SELLE ROYAL "Essenza Heavy Duty", Moderate Wide |
| Seat post: | by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset |
| Chain guard: | CURANA "C+", 46 teeth |
| Mud Guards: | curana "Apollo Orbit 70" |
| Carrier: | QIO "MIK HD 2.0" mit MIK Studs |
| Front carrier: | QIO "Ben" |
| Front light: | Busch + Müller "Briq-S E", 60 Lux |
| Tail light: | Busch + Müller "Dart E Brex " |
| Battery Lock: | ABUS Akkuschloss |
| Kickstand: | URSUS "R78 - King Mini" |
| Pedals: | UNION "SP-157", faltbar |
Technical data
| Category: | Compact bike |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Performance Line |
| Drive version: | middle motor |
| Battery capacity: | 800 Wh |
| Support: | till 25km/h |
| Sex: | unisex |
| Frame shape: | unisex |
| Frame height: | 48 cm |
| Wheel size: | 20" |
| Shifting type: | hub gear |
| Gears: | 5-speed |
| Circuit brand: | Shimano |
| Shifting model: | Nexus |
| Brake system: | hydraulic disc brake |
| Features: | suspensed seat post, system carrier, front carrier, deep entry, chain guard, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 180 kg |
| Material: | aluminium |
| Colour: | grey |
| Colour designation: | lead metal |
| EAN | 4251971163997 |
7562
Geometry data "QIO EINS+ P-5 unisex (2025)"
| Seat tube: | 48 mm |
| Toptube: | 576 mm |
| Steering tube angle: | 71° |
| Stem length: | 70 mm |
| Seat angle: | 71° |
| Kettenstrebe: | 451 mm |
| Steering tube: | 220 mm |
| Reach: | 408 mm |
| Stack: | 541 mm |
| Access height: | 182 mm |
| Passage width: | 190 mm |
| Wheel distance: | 1.108 mm |
| Length: | 1.685 mm |
