Product information
"EINS AP-8 Night Line unisex "
Experience how the QiO "EINS AP-8 Night Line" enriches your everyday life. In a deep, calm midnight blue, the compact e-bike radiates timeless elegance. The low step-through with Handle, tool-free QR for Saddle and Handlebar and the MIK HD system carrier make handling child's play.
The 20" wheels ensure maneuverability in the city, while the Bosch "Active Line Plus" engine with 500 Wh "PowerPack" supports you up to 25 km/h. The Battery is easy to remove. The 8-speed Shimano "Nexus" hub gears are low-maintenance and reliable.
Safety is a top priority with QiO: The bright LED Front Light ensures that you are clearly visible even in the dark. The Stem can be rotated by 90° and the Pedals can be folded down so that you can store the e-bike in a space-saving manner.
The 20" wheels ensure maneuverability in the city, while the Bosch "Active Line Plus" engine with 500 Wh "PowerPack" supports you up to 25 km/h. The Battery is easy to remove. The 8-speed Shimano "Nexus" hub gears are low-maintenance and reliable.
Safety is a top priority with QiO: The bright LED Front Light ensures that you are clearly visible even in the dark. The Stem can be rotated by 90° and the Pedals can be folded down so that you can store the e-bike in a space-saving manner.
Specifications "QIO EINS AP-8 Night Line unisex (2025)"
| Frame: | QIO EINS, Bosch Gen. 3, BES2, Aluminium, 48 cm, beryl blue glossy |
| Dropout: | QIO Slider Dropout |

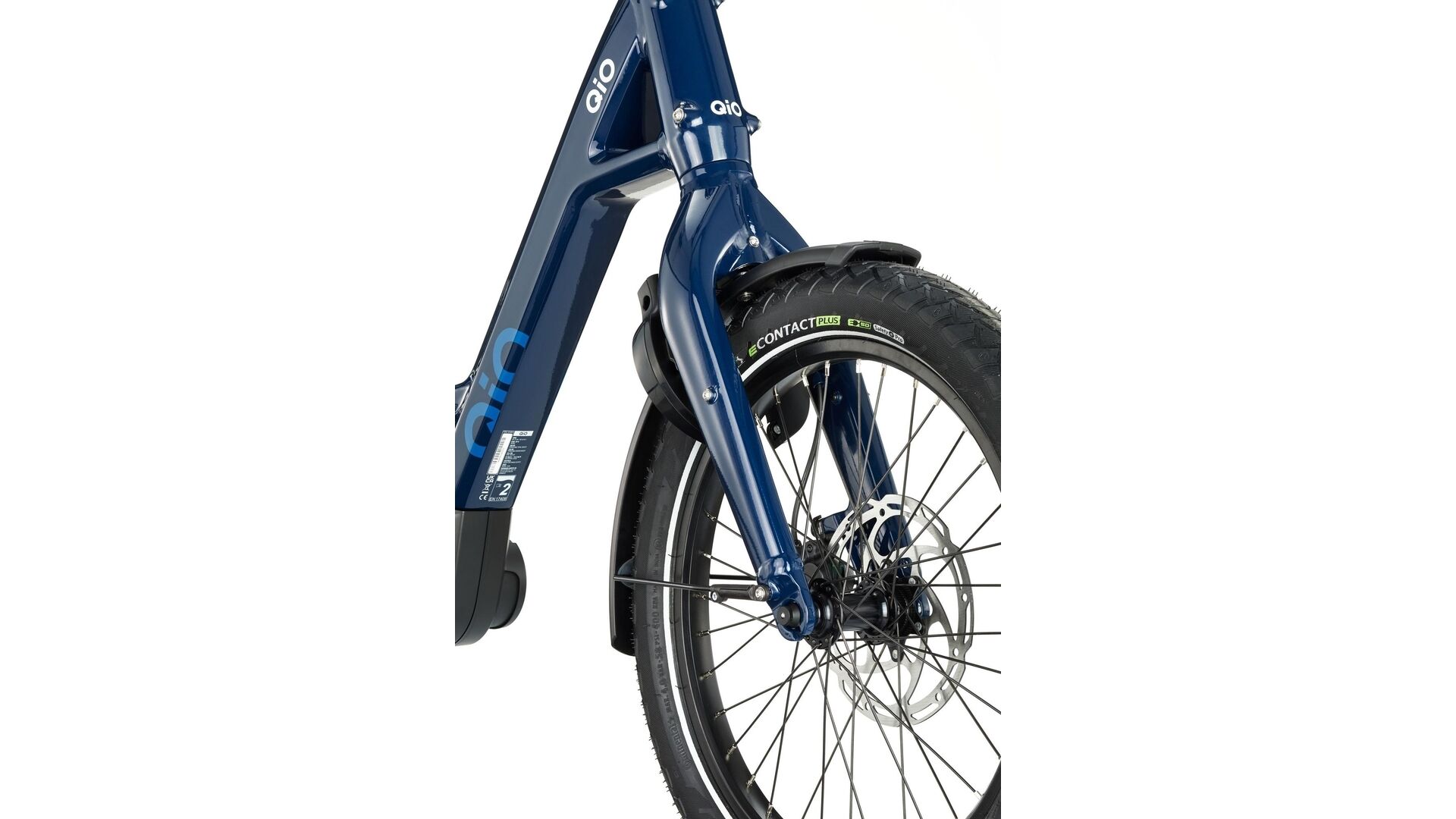

| Fork: | Aluminium, tapered 1 1/4" - 1,5" |
| Headset: | TOKEN "TK255E-HJ01", IS52/40 / IS52/44 |
| Crank arm: | Stronglight "Magan 3B", 170 mm |
| Chain ring / belt ring: | STRONGLIGHT, 44 teeth |
| Bottom Bracket: | BOSCH |
| Brakes: | Tektro Scheibenbremse "T-280", hydraulisch |
| Bremse V.R.: | TEKTRO "HD-T280", Post Mount |
| Bremse H.R.: | TEKTRO Disc Brakes "HD-T280", hydraulic, 2 pistons, A11 Adapter, for 1.8 mm brake rotors |
| Brake lever: | Tektro Scheibenbremse "T-280", hydraulisch |
| Front rotor: | TEKTRO "TR180-35", Ø 180 mm, Center Lock |
| Rear rotor: | TEKTRO "TR180-35", Ø 180 mm, Center Lock |
| Shifting lever: | SHIMANO "Nexus, SL-C6000-8" |
| Cassette / belt sprocket: | SHIMANO "SM-GEAR", 16 teeth |
| Chain / belt: | KMC "e1 EPT" |
| Drive unit: | BOSCH "Active Line Plus", max. 50 Nm |

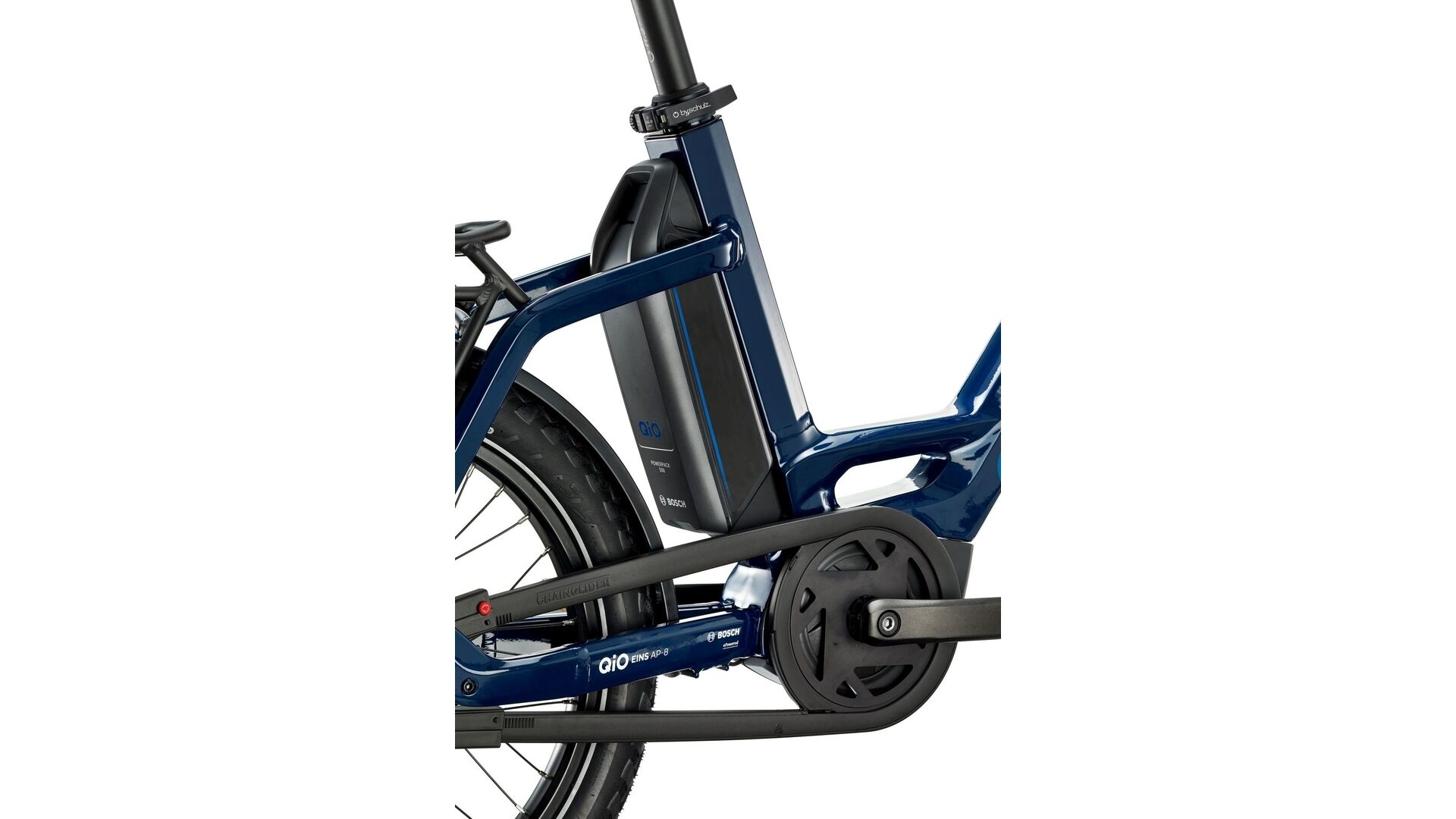

| Battery: | BOSCH "PowerPack 500", 500 Wh |
| Charger: | BOSCH 2 A |
| Display: | BOSCH "Intuvia", 4 levels, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black |
| Spokes: | 2,0 mm, Niro |
| Front hub: | SHIMANO "HB-QC400", Center Lock, QR |
| Rear hub: | SHIMANO "Nexus SG-C6061-8D", 8-speed, Center Lock |
| Front tires: | CONTINENTAL "eContact Plus", 62-406, Reflex |
| Rear tires: | CONTINENTAL "eContact Plus", 62-406, Reflex |
| Handle bar: | ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep |
| Stem: | BY.SCHULZ "Twist", Ø 28.6 mm, 1 1/4", T22 |
| Grips: | HERRMANS "Clik Original DD37" |
| Saddle: | Selle Royal "On", Moderate |
| Seat post: | by,schulz "R.3 P-QR", Ø 34.9 mm, 400 mm long, 25 mm offset |
| Chain guard: | hebie "Chainglider", front 44 teeth, rear 16-18 teeth |
| Mud Guards: | SKS "A 69 R" |
| Carrier: | QIO "MIK HD 2.0" |
| Front light: | CONTEC "DLUX 50 E+", 50 lux |
| Tail light: | CONTEC "TL-335 E-Stop", stop light |
| Frame Lock: | CONTEC "PowerLoc L" |
| Battery Lock: | CONTEC "PowerLoc L" |
| Kickstand: | URSUS "R78 - King Mini" |
| Pedals: | UNION "SP-153", foldable |
Technical data
| Category: | Compact bike |
| E-bike: | yes |
| Bosch Smart System: | no |
| Drive system: | BOSCH Active Line Plus |
| Drive version: | middle motor |
| Battery capacity: | 500 Wh |
| Support: | till 25km/h |
| Sex: | unisex |
| Frame shape: | unisex |
| Frame height: | 48 cm |
| Wheel size: | 20" |
| Shifting type: | hub gear |
| Gears: | 8-speed |
| Circuit brand: | Shimano |
| Shifting model: | Nexus |
| Brake system: | hydraulic disc brake |
| Features: | system carrier, deep entry, chain guard, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 180 kg |
| Material: | aluminium |
| Colour: | blue |
| Colour designation: | beryl blue |
| Weight: | 26,40 kg |
| EAN | 4251971173378 |
