Product information

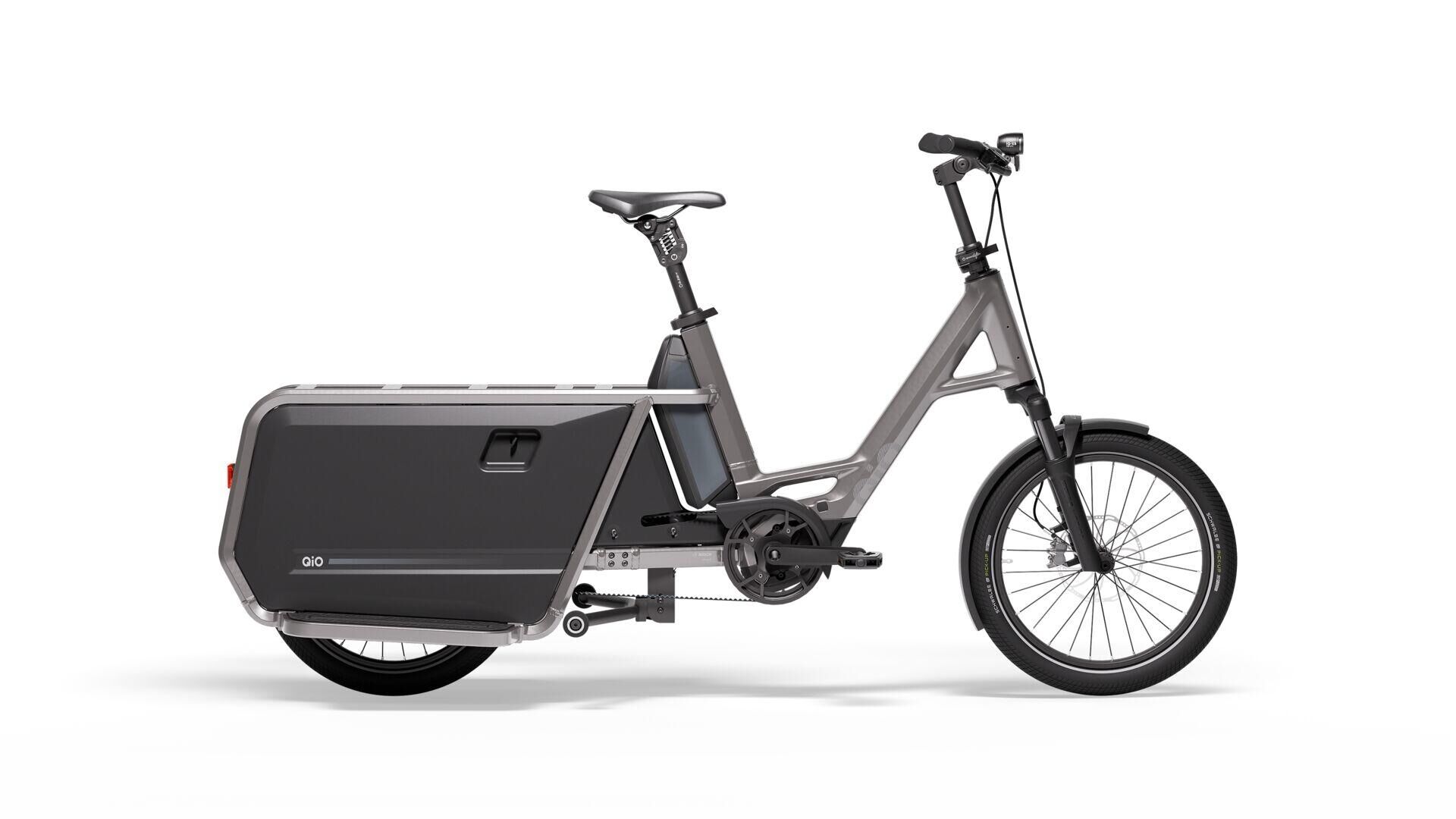

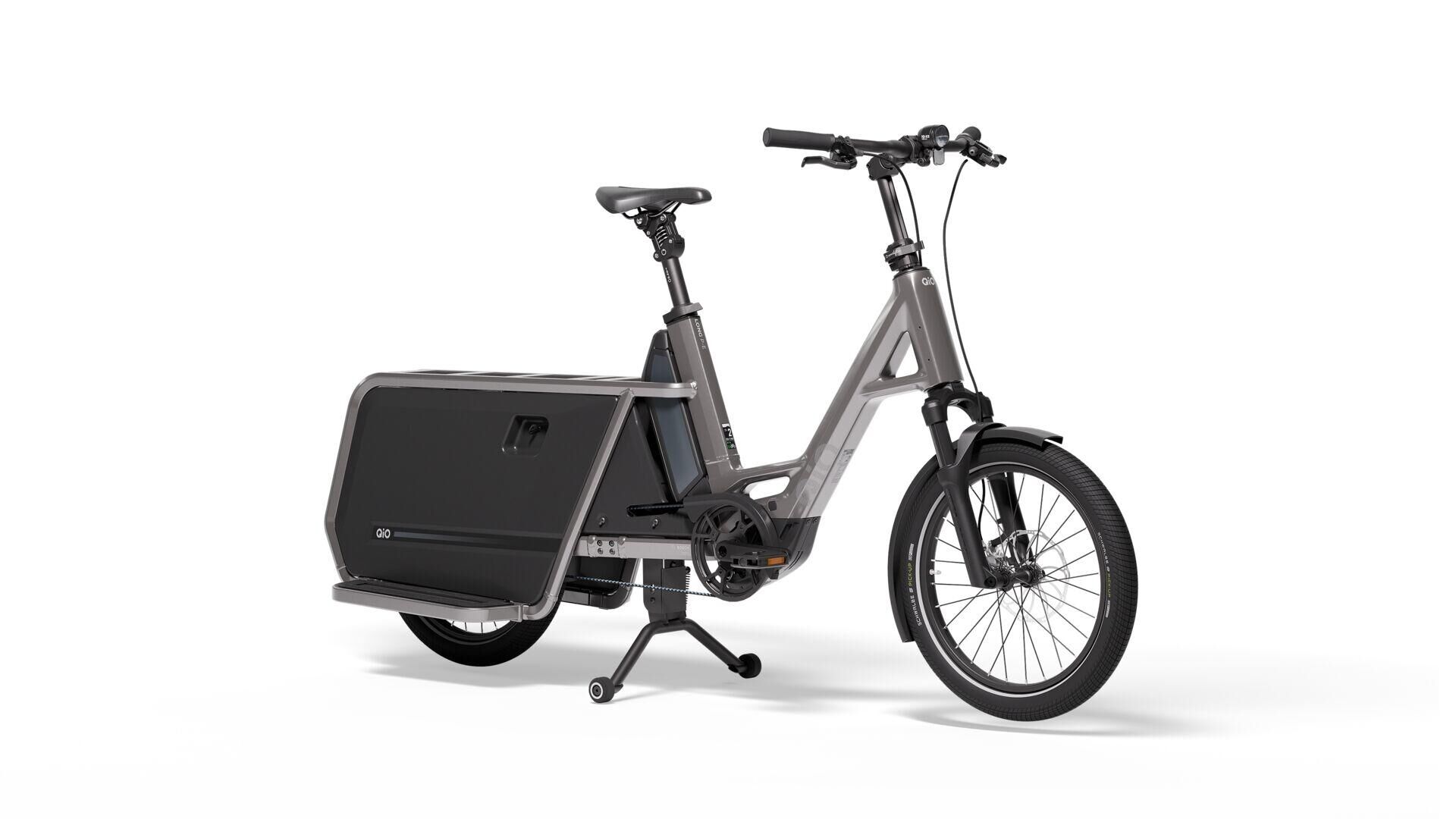

"Long CLAx unisex "
The "Long CLAx" from QiO is the highest quality model in the Long range - developed for all those who want to combine maximum transport performance with the highest level of riding comfort. The combination of 80 mm Suspension Fork and suspended Seatposts provides noticeable relief on uneven paths and makes even fully loaded rides pleasant.
The Bosch "Cargo Line" engine with Smart System provides particularly powerful support up to 25 km/h - ideal for heavy loads and demanding routes. The continuously variable Enviolo Automatiq hub gear takes care of the shifting, so you can concentrate fully on the ride and your surroundings. The belt drive is also almost invisible to you - it runs quietly, is low-maintenance and durable.
The lighting is provided by the high-quality Busch+Müller "IQ-XS high beam" LED Front Light, which offers excellent illumination of the road with 100 lux low beam and 150 lux high beam function - ideal for riding in the dark and in poor visibility conditions.
With 800 Wh battery capacity, 20" wheels and a permissible total weight of 200 kg, the "Long CLAx" is perfect for families and anyone who wants to move a lot - comfortably, safely and stylishly.
The Bosch "Cargo Line" engine with Smart System provides particularly powerful support up to 25 km/h - ideal for heavy loads and demanding routes. The continuously variable Enviolo Automatiq hub gear takes care of the shifting, so you can concentrate fully on the ride and your surroundings. The belt drive is also almost invisible to you - it runs quietly, is low-maintenance and durable.
The lighting is provided by the high-quality Busch+Müller "IQ-XS high beam" LED Front Light, which offers excellent illumination of the road with 100 lux low beam and 150 lux high beam function - ideal for riding in the dark and in poor visibility conditions.
With 800 Wh battery capacity, 20" wheels and a permissible total weight of 200 kg, the "Long CLAx" is perfect for families and anyone who wants to move a lot - comfortably, safely and stylishly.
Specifications "QIO Long CLAx unisex (2026)"
| Frame: | QIO Long, Bosch Gen. 4, BES3, aluminum, 48 cm |
| Dropout: | Slider dropout, suitable for Long CLA, Long P9 |
| Fork: | SR SUNTOUR "SF22-Mobie34-CGO-Boost", 80 mm Federweg, Steckachse |
| Headset: | ACROS ZS66/31,75 OD74 / ZS66/46/OD72, Blocklock |
| Crank arm: | PROWHEEL "EB03", 170 mm |
| Chain ring / belt ring: | Gates "CDX Fin Line", 55 teeth, belt line 50 mm |
| Bottom Bracket: | BOSCH |
| Bremse V.R.: | MAGURA "LOUISE" |
| Bremse H.R.: | MAGURA "LOUISE" |
| Front rotor: | MAGURA "MDR-C", Ø 180 mm |
| Rear rotor: | MAGURA "MDR-C", Ø 180 mm |
| Cassette / belt sprocket: | Gates "CDX Fin Line", 22 teeth |
| Chain / belt: | GATES "CDX" |
| Drive unit: | BOSCH "Performance Line CX", BDU38, max. 100 Nm |
| Battery: | BOSCH "Active Line Plus", max. 50 Nm |
| Charger: | BOSCH 4 A |
| Display: | BOSCH "Purion 200" Display, 4-stage, Remote Control, Pushing Help |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | RYDE "Andra 29D", 36 Loch |
| Spokes: | 2,3 mm ED, Niro, schwarz |
| Front hub: | FORMULA "FDC-611", 15 x 110 mm, Steckachse |
| Rear hub: | enviolo "Heavy Duty", stufenlos, 6-Loch |
| Front tires: | SCHWALBE "Pick-Up", 60-406, Reflex |
| Rear tires: | SCHWALBE "Pick-Up", 60-406, Reflex |
| Handle bar: | satori "Noir", 660 mm, Aluminium, Ø 31,8 mm, 30° Backsweep |
| Stem: | ergotec "Sepia Ahead XL", 80 mm long, adjustable, level 5 |
| Grips: | HERRMANS "Nucore Town", wave |
| Saddle: | Selle Royal "On", Moderate Wide |
| Seat post: | by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset |
| Chain guard: | SKS "Chainblade" |
| Mud Guards: | SKS "A 69 R" |
| Carrier: | "MIK HD 2.0" for MIK Side |
| Front light: | Busch + Müller "IQ-XS E Highbeam", 100 Lux |
| Tail light: | spanninga "HALO+ XEr", Stopplicht |
| Battery Lock: | ABUS "XPlus" |
| Kickstand: | "Cargo" mit Lock Remote |
| Pedals: | MARWI "SP-880" |
Technical data
| Category: | Transport bike |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Cargo Line |
| Drive version: | middle motor |
| Battery capacity: | 800 Wh |
| Support: | till 25km/h |
| Sex: | unisex |
| Frame shape: | unisex |
| Frame height: | 48 cm |
| Wheel size: | 20" |
| Shifting type: | hub gear |
| Gears: | stepless |
| Circuit brand: | Enviolo |
| Shifting model: | Automatiq |
| Brake system: | hydraulic disc brake |
| Travel: | 80 mm |
| Features: | suspension fork, system carrier, chain guard, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 200 kg |
| Material: | aluminium |
| Colour: | grey |
| Colour designation: | lead metal |
| Weight: | 40,00 kg |
| EAN | 4251971178595 |
7587
Geometry data "QIO Long CLAx unisex (2026)"
| Seat tube: | 495 mm |
| Steering tube angle: | 71° |
| Stem length: | 80 mm |
| Seat angle: | 71° |
| Kettenstrebe: | 755 mm |
| Steering tube: | 220 mm |
| Reach: | 600 mm |
| Stack: | 540 mm |
| Access height: | 457 mm |
| Passage width: | 195 mm |
| Standover height: | 457 mm |
| Wheel distance: | 1.400 mm |
| Length: | 2.000 mm |
