Product information

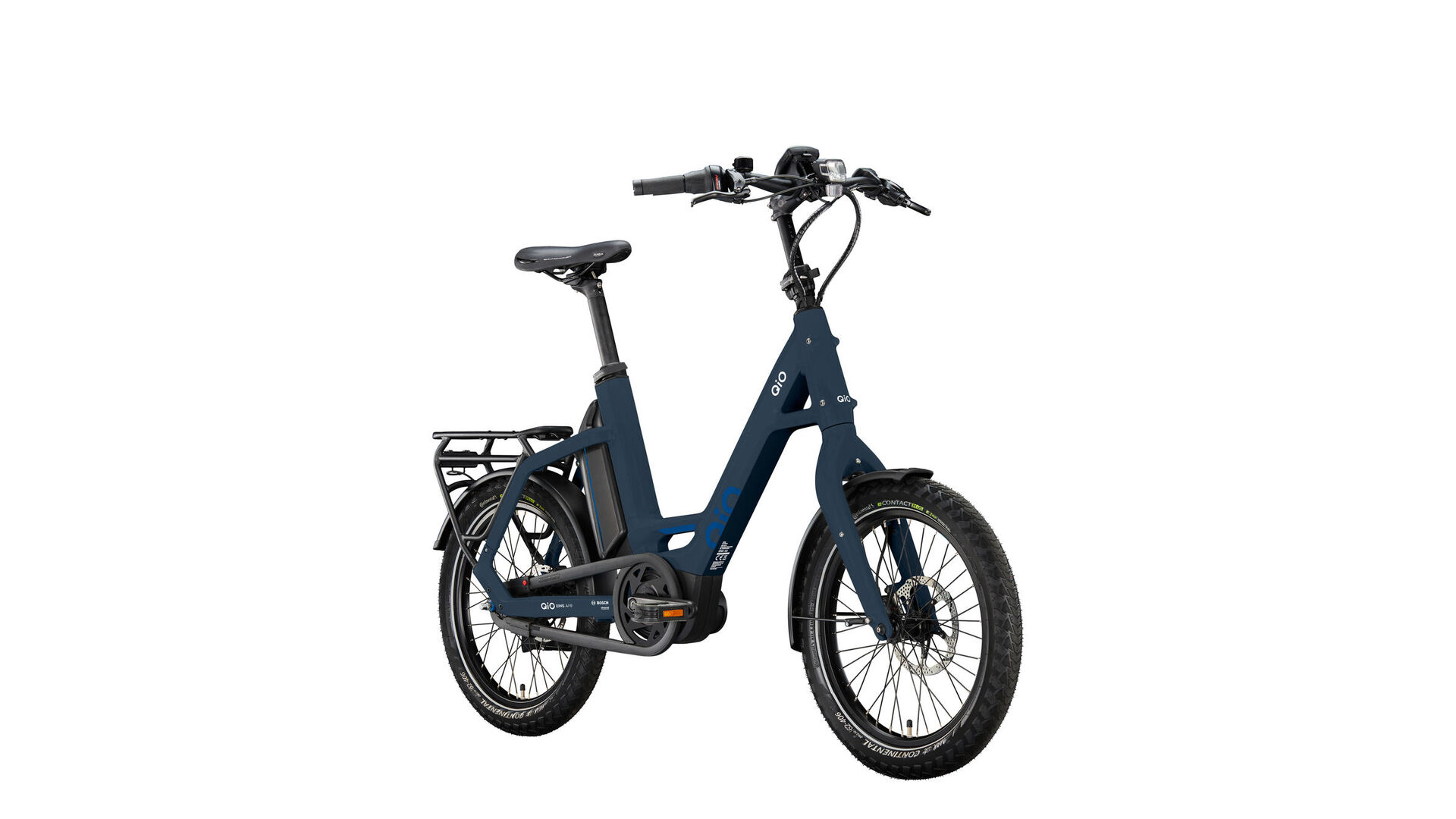

"EINS AP-8 unisex "
Space-saving & practical
If you would like to master your everyday life by bike, are perhaps even considering replacing your car with an e-bike or simply want to try something new, QIO's "EINS AP-8" is the perfect choice. The compact e-bike impresses with its space-saving size and a number of practical features that can be efficiently integrated into everyday life.
The day starts practically and comfortably as soon as you leave the house. The "EINS AP-8" has a low step-through with a handle so that you can easily pick up the bike and carry it outside. Quickly adjust the seatpost and Stem - all without tools using the QR - click the panniers onto the MIK HD system carrier and off you go.
With its 20'' wheels, the e-bike is agile and maneuverable through narrow streets in the city. Prefer to avoid cobblestones? You don't have to - the 62 mm wide CONTINENTAL tires absorb bumps with ease. The BY.SCHULZ seatpost is equipped with anti-theft protection.
Always on board is the BOSCH "Active Line Plus" engine, which always drives you forward harmoniously up to 25 km/h. It draws its energy from the 500 Wh "PowerPack". Thanks to the convenient Seat Stay position, the Battery can be easily removed for charging and connected to the mains. The 8-speed SHIMANO "Nexus" hub gears are there for fine-tuning the drives and are also particularly low-maintenance.
Back home safely in the evening thanks to the bright LED Front Light and Rear Light with stop light function, the "EINS AP-8" can be stowed away just as easily as you got it ready for the descent in the morning. Thanks to the "Speedlifter Twist" function, the Stem can be rotated by 90° and the Pedals can be folded up - all to take up as little space as possible.
If you would like to master your everyday life by bike, are perhaps even considering replacing your car with an e-bike or simply want to try something new, QIO's "EINS AP-8" is the perfect choice. The compact e-bike impresses with its space-saving size and a number of practical features that can be efficiently integrated into everyday life.
The day starts practically and comfortably as soon as you leave the house. The "EINS AP-8" has a low step-through with a handle so that you can easily pick up the bike and carry it outside. Quickly adjust the seatpost and Stem - all without tools using the QR - click the panniers onto the MIK HD system carrier and off you go.
With its 20'' wheels, the e-bike is agile and maneuverable through narrow streets in the city. Prefer to avoid cobblestones? You don't have to - the 62 mm wide CONTINENTAL tires absorb bumps with ease. The BY.SCHULZ seatpost is equipped with anti-theft protection.
Always on board is the BOSCH "Active Line Plus" engine, which always drives you forward harmoniously up to 25 km/h. It draws its energy from the 500 Wh "PowerPack". Thanks to the convenient Seat Stay position, the Battery can be easily removed for charging and connected to the mains. The 8-speed SHIMANO "Nexus" hub gears are there for fine-tuning the drives and are also particularly low-maintenance.
Back home safely in the evening thanks to the bright LED Front Light and Rear Light with stop light function, the "EINS AP-8" can be stowed away just as easily as you got it ready for the descent in the morning. Thanks to the "Speedlifter Twist" function, the Stem can be rotated by 90° and the Pedals can be folded up - all to take up as little space as possible.
Specifications "QIO EINS AP-8 unisex (2023)"
| Frame: | QIO EINS, Bosch Gen. 3, BES2, aluminum, 48 cm, beryl blue matt |
| Dropout: | QIO Slider Dropout |
| Fork: | QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, beryl blue matt |
| Headset: | TOKEN "TK255E-HJ01", IS52/40 / IS52/44 |
| Crank arm: | Stronglight "Magan 3B", 170 mm |
| Chain ring / belt ring: | STRONGLIGHT, 44 teeth |
| Bremse V.R.: | TRP "C1.8 HD-EU817", Post Mount |
| Bremse H.R.: | TRP "C1.8 HD-EU817" |
| Front rotor: | TRP "TR-25", Ø 180 mm, Centerlock |
| Rear rotor: | TRP "TR-25", Ø 160 mm, Centerlock |
| Shifting lever: | SHIMANO "Nexus, SL-C6000-8" |
| Cassette / belt sprocket: | SHIMANO "SM-GEAR", 16 teeth |
| Chain / belt: | KMC "e1 EPT" |
| Drive unit: | BOSCH "Active Line Plus", max. 50 Nm |
| Battery: | BOSCH "PowerPack 500", 500 Wh |
| Charger: | BOSCH 4 A |
| Display: | BOSCH "Intuvia", 4 levels, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | SCHÜRMANN "YAK DISC 25", 25-406, 36 holes, disc brake, black |
| Spokes: | Niro schwarz |
| Front hub: | URSUS "RD30", Center Lock, QR |
| Rear hub: | SHIMANO "Nexus SG-C6061-8D", 8-speed, Center Lock |
| Front tires: | CONTINENTAL "eContact Plus", 62-406, Reflex |
| Rear tires: | CONTINENTAL "eContact Plus", 62-406, Reflex |
| Handle bar: | ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep |
| Stem: | BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black |
| Grips: | HERRMANS "Clik Original DD37" |
| Saddle: | Selle Royal "Nuvola 5060", Relaxed |
| Seat post: | by,schulz "R.3 P-QR", Ø 34.9 mm, 400 mm long, 25 mm offset |
| Chain guard: | hebie "Chainglider", front 44 teeth, rear 16-18 teeth |
| Mud Guards: | SKS "A 69 R" |
| Carrier: | QIO "MIK HD" |
| Front light: | CONTEC "DLUX 80 E+", 80 lux |
| Tail light: | CONTEC "TL-335 E-Stop", stop light |
| Kickstand: | URSUS "R78 - King Mini" |
| Pedals: | UNION "SP-153", foldable |
Technical data
| Category: | Compact bike |
| E-bike: | yes |
| Bosch Smart System: | no |
| Drive system: | BOSCH Active Line Plus |
| Drive version: | middle motor |
| Battery capacity: | 500 Wh |
| Support: | till 25km/h |
| Sex: | unisex |
| Frame shape: | unisex |
| Frame height: | 47 cm |
| Wheel size: | 20" |
| Shifting type: | hub gear |
| Gears: | 8-speed |
| Circuit brand: | Shimano |
| Shifting model: | Nexus |
| Brake system: | hydraulic disc brake |
| Features: | chain guard, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 140 kg |
| Material: | aluminium |
| Colour: | blue |
| Colour designation: | beryl blue matt |
| Weight: | 26,35 kg |
| EAN | 4251507990769 |
7464
Geometry data "QIO EINS AP-8 unisex (2023)"
| Seat tube: | 480 mm |
| Toptube: | 600 mm |
| Steering tube angle: | 71° |
| Seat angle: | 71° |
| Kettenstrebe: | 455 mm |
| Steering tube: | 220 mm |
| Reach: | 408 mm |
| Stack: | 540 mm |
| Access height: | 446 mm |
| Passage width: | 165 mm |
| Wheel distance: | 1.108 mm |
| Length: | 1.632 mm |
