Product information

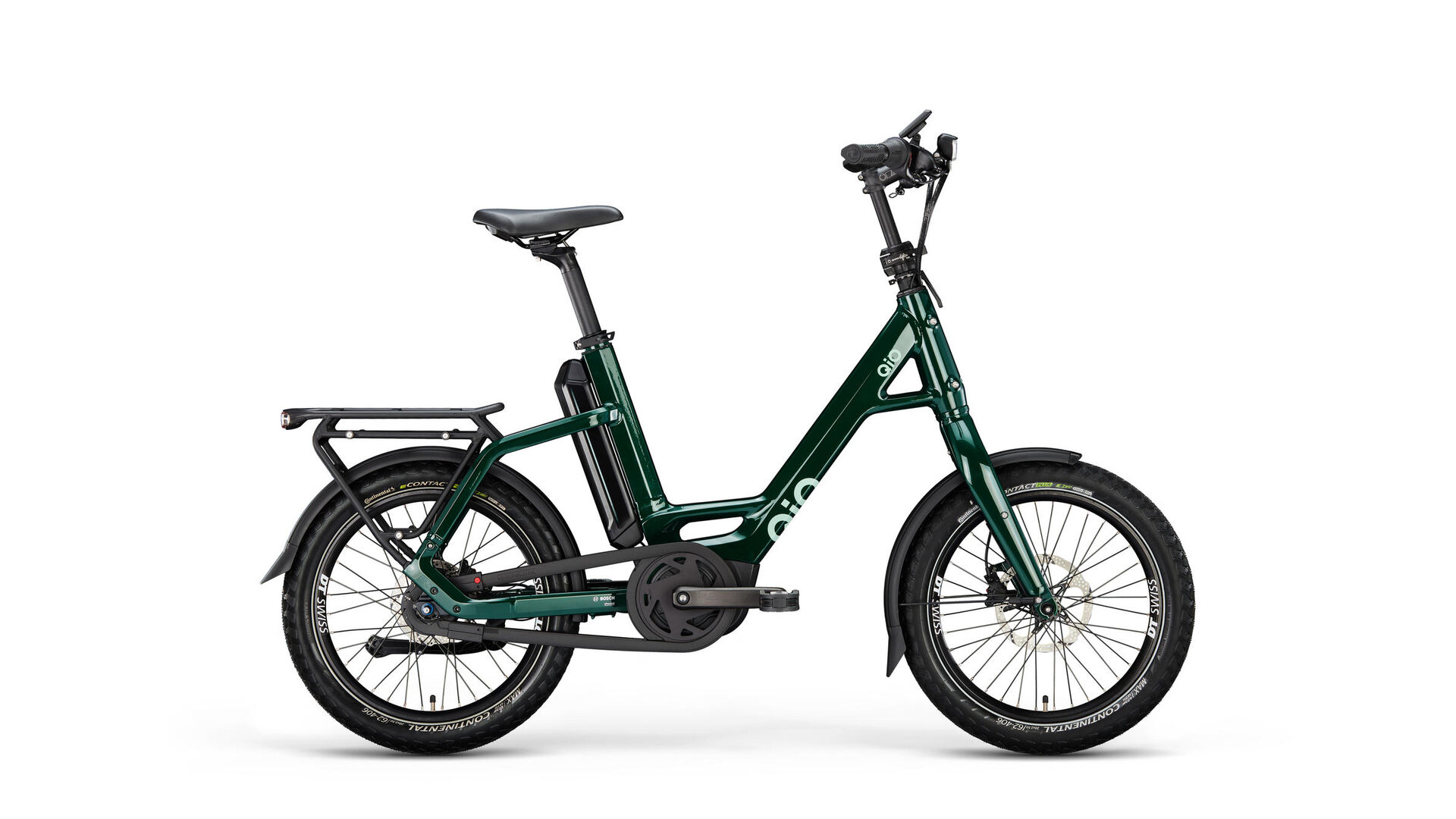

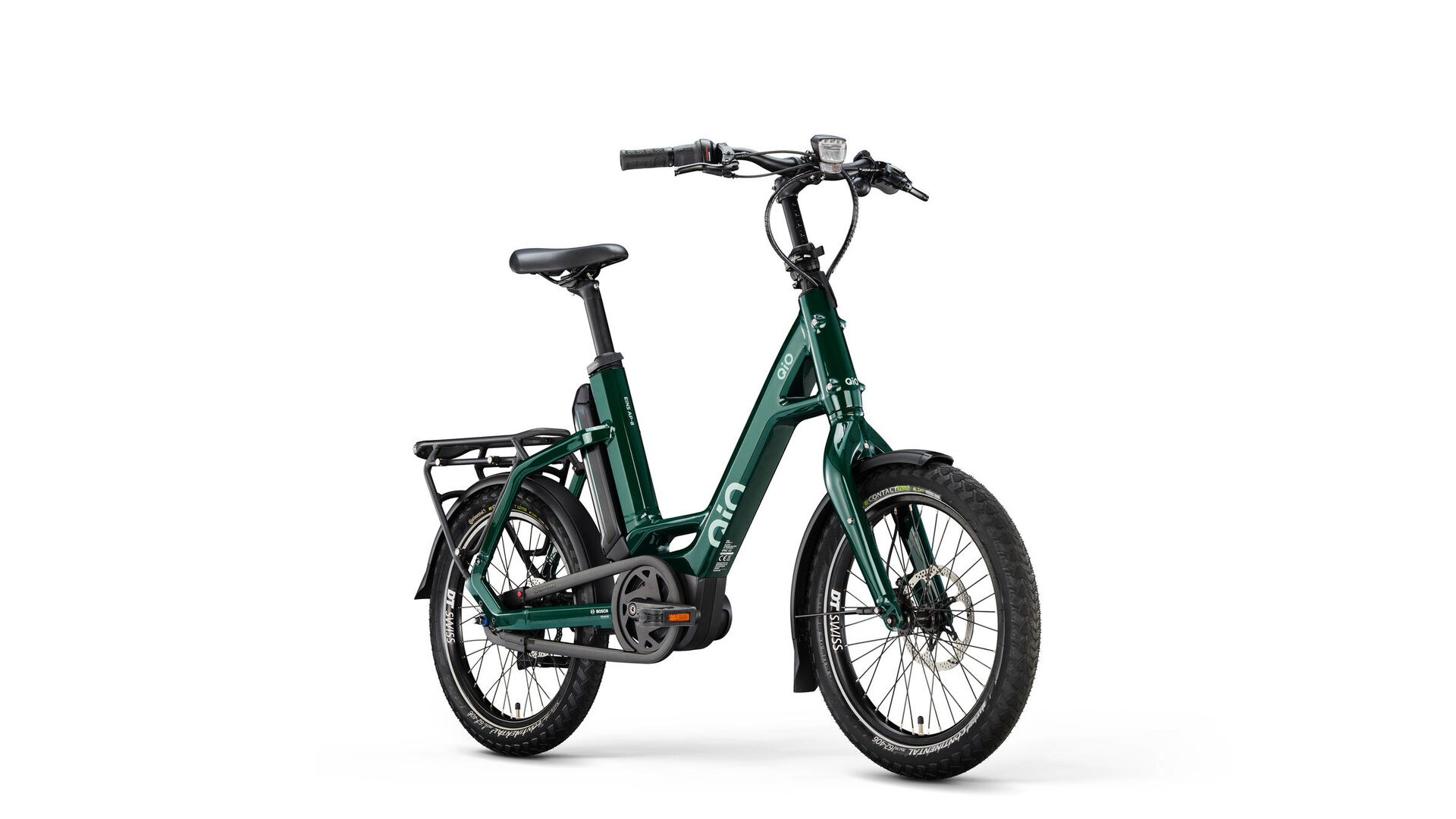

"EINS AP-8 unisex "
If you want to enrich your everyday life with an e-bike, QiO's "EINS AP-8" is the perfect choice. The compact e-bike impresses with its space-saving size and the smart Bosch system (BES3). The "Purion 200" Display provides all important information at a glance. The maximum rider weight is 120 kg.
Practical and comfortable: The "EINS AP-8" has a low step-through with Handle, tool-free QR for Saddles and Handlebars and a MIK HD system luggage carrier. With its 20'' wheels, it maneuvers agilely through the city.
The Bosch "Active Line Plus" engine supports up to 25 km/h, powered by a 400 Wh "PowerPack". The Battery can be easily removed and recharged. The 8-speed Shimano "Nexus" hub gears are low-maintenance.
Thanks to the bright LED Front Light and Rear Light with stop light function integrated into the Carrier, you are safe on the road in the evening. The Stem can be rotated by 90° and the Pedals can be folded down - perfect for saving space.
Practical and comfortable: The "EINS AP-8" has a low step-through with Handle, tool-free QR for Saddles and Handlebars and a MIK HD system luggage carrier. With its 20'' wheels, it maneuvers agilely through the city.
The Bosch "Active Line Plus" engine supports up to 25 km/h, powered by a 400 Wh "PowerPack". The Battery can be easily removed and recharged. The 8-speed Shimano "Nexus" hub gears are low-maintenance.
Thanks to the bright LED Front Light and Rear Light with stop light function integrated into the Carrier, you are safe on the road in the evening. The Stem can be rotated by 90° and the Pedals can be folded down - perfect for saving space.
Specifications "QIO EINS AP-8 unisex (2025)"
| Frame: | QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, forest green glossy |
| Dropout: | QIO Slider Dropout |
| Fork: | QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, forest green glossy |
| Headset: | TOKEN "TK255E-HJ04", IS52/40 / IS52/44 |
| Crank arm: | Stronglight "Magan 3B", 170 mm |
| Chain ring / belt ring: | STRONGLIGHT, 44 teeth |
| Bottom Bracket: | BOSCH |
| Bremse V.R.: | TRP "C1.8 HD-EU817", Post Mount |
| Bremse H.R.: | TRP "C1.8 HD-EU817" |
| Brake lever: | TRP HD-EU817 |
| Front rotor: | TRP "TR-25", Ø 180 mm, Centerlock |
| Rear rotor: | TRP "TR-25", Ø 160 mm, Centerlock |
| Shifting lever: | SHIMANO "Nexus, SL-C6000-8" |
| Cassette / belt sprocket: | SHIMANO "SM-GEAR", 16 teeth |
| Chain / belt: | KMC "e1 EPT" |
| Drive unit: | BOSCH "Active Line Plus", max. 50 Nm |
| Battery: | BOSCH "PowerPack 400", 400 Wh |
| Charger: | BOSCH 4 A |
| Display: | BOSCH "Purion 200" Display, 4-stage, Remote Control, Pushing Help |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | DT SWISS "U 663", 36 hole, eyeletted, tubeless ready |
| Spokes: | DT-Swiss ELEMENTAL, schwarz |
| Front hub: | SHIMANO "HB-QC400", Center Lock, QR |
| Rear hub: | SHIMANO "Nexus SG-C6061-8D", 8-speed, Center Lock |
| Front tires: | CONTINENTAL "eContact Plus", 62-406, Reflex |
| Rear tires: | CONTINENTAL "eContact Plus", 62-406, Reflex |
| Handle bar: | SATORI "Wien", 640 mm, Ø 31,8 mm, Rise 20 mm |
| Stem: | 1 1/8", 31,8 mm Lenkerklemmung, 70 mm lang, Winkel 6° |
| Grips: | HERRMANS "Nucore Town", wave |
| Saddle: | Selle Royal "On", Moderate Wide |
| Seat post: | by,schulz "R.3 P-QR", Ø 34.9 mm, 400 mm long, 25 mm offset |
| Chain guard: | hebie "Chainglider", front 44 teeth, rear 16-18 teeth |
| Mud Guards: | curana "Apollo Orbit 70" |
| Carrier: | QIO "MIK HD 2.0" mit MIK STUDS |
| Front light: | Busch + Müller "Briq-S E", 60 Lux |
| Tail light: | Busch + Müller "Dart E Brex " |
| Battery Lock: | ABUS Akkuschloss |
| Kickstand: | URSUS "R78 - King Mini" |
| Pedals: | UNION "SP-153", foldable |
Technical data
| Category: | Compact bike |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Active Line Plus |
| Drive version: | middle motor |
| Battery capacity: | 400 Wh |
| Support: | till 25km/h |
| Sex: | unisex |
| Frame shape: | unisex |
| Frame height: | 48 cm |
| Wheel size: | 20" |
| Shifting type: | hub gear |
| Gears: | 8-speed |
| Circuit brand: | Shimano |
| Shifting model: | Nexus |
| Brake system: | hydraulic disc brake |
| Features: | system carrier, deep entry, chain guard, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 180 kg |
| Material: | aluminium |
| Colour: | green |
| Colour designation: | forest green |
| Weight: | 26,40 kg |
| EAN | 4251971163461 |
5509
Geometry data "QIO EINS AP-8 unisex (2025)"
| Seat tube: | 48 mm |
| Toptube: | 576 mm |
| Steering tube angle: | 71° |
| Stem length: | 70 mm |
| Seat angle: | 71° |
| Kettenstrebe: | 451 mm |
| Steering tube: | 220 mm |
| Reach: | 408 mm |
| Stack: | 541 mm |
| Access height: | 182 mm |
| Passage width: | 190 mm |
| Wheel distance: | 1.108 mm |
| Length: | 1.685 mm |
