Product information

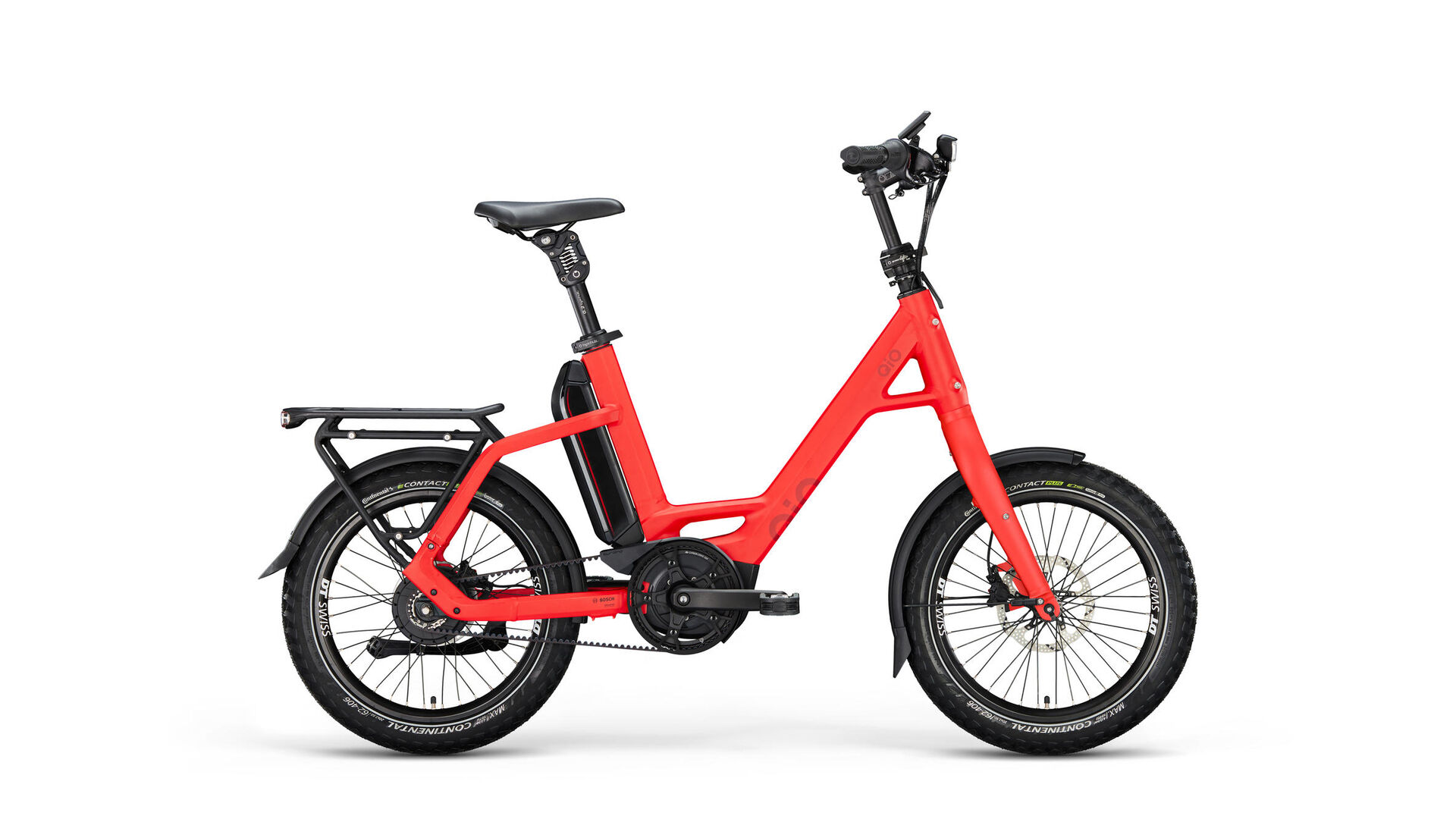

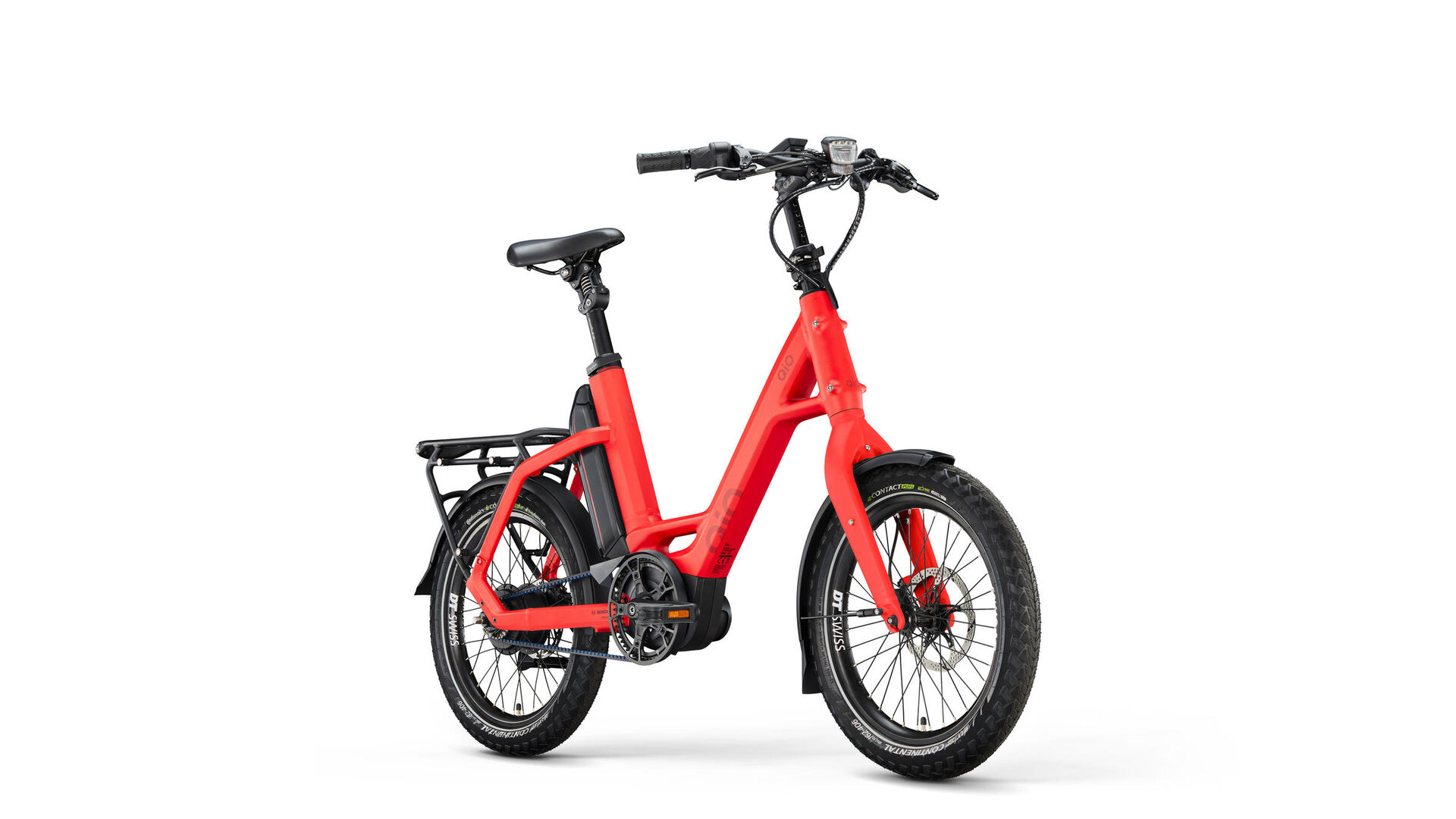

"EINS P-E unisex "
The QiO "EINS P-E" compact e-bike is ideal for city rides and shopping. With the Bosch Smart System (BES3), it always stays up to date. The eBike Flow app connects the "Performance Line" engine, the 545 Wh Battery and the Operating Unit, allowing you to select riding modes, plan routes and record tours. The results can be synchronized with health apps, for example.
The continuously variable Enviolo "TR" gear hub is perfect for hilly terrain and overland tours. Together with the Bosch engine, you can reach speeds of up to 25 km/h. The Gates CDC Straps The compact design, foldable pedals and folding Handlepost make it easy to stow away in small spaces or in a camper van.
With 62 mm wide tires on 20" wheels and the Parallelogramm Suspension Seatposts, the compact e-bike offers a high level of comfort on paved paths. The by,schulz seatpost is also theft-proof.
The continuously variable Enviolo "TR" gear hub is perfect for hilly terrain and overland tours. Together with the Bosch engine, you can reach speeds of up to 25 km/h. The Gates CDC Straps The compact design, foldable pedals and folding Handlepost make it easy to stow away in small spaces or in a camper van.
With 62 mm wide tires on 20" wheels and the Parallelogramm Suspension Seatposts, the compact e-bike offers a high level of comfort on paved paths. The by,schulz seatpost is also theft-proof.
Specifications "QIO EINS P-E unisex (2025)"
| Frame: | QIO EINS, Bosch Gen. 3, BES3, aluminum, 49.5 cm, imola red matt |
| Dropout: | QIO Slider Dropout |
| Fork: | QIO EINS 20", aluminum, tapered 1 1/4" - 1.5", 313.5 mm stem, post mount, imola red matt |
| Headset: | TOKEN "TK255E-HJ04", IS52/40 / IS52/44 |
| Crank arm: | Stronglight "Magan 3B", 170 mm |
| Chain ring / belt ring: | Gates "CDC", 55 Zähne, Rimeenlinie 45,5 mm |
| Bottom Bracket: | BOSCH |
| Bremse V.R.: | TRP "C1.8 HD-EU817", Post Mount |
| Bremse H.R.: | TRP "C1.8 HD-EU817" |
| Brake lever: | TRP HD-EU817 |
| Front rotor: | TRP "TR-25", Ø 180 mm, Centerlock |
| Rear rotor: | TRP "RS02M", Ø 160 mm, 6-hole |
| Shifting lever: | ENVIOLO "Twist Pure Display", stepless |
| Cassette / belt sprocket: | GATES "CDC", 22 teeth |
| Chain / belt: | GATES "CDC" |
| Drive unit: | BOSCH "Performance Line" engine, max. 75 Nm |
| Battery: | BOSCH "PowerPack 545", 545 Wh |
| Charger: | BOSCH 4 A |
| Remote: | BOSCH "BRC3600", LED Remote |
| Display: | BOSCH "Kiox 300", 4-stages, remote control, push aid |
| Sensor: | Tretkraftmessung im Motor + Geschwindigkeitssensor |
| Rims: | DT SWISS "U 663", 36 hole, eyeletted, tubeless ready |
| Spokes: | DT-Swiss ELEMENTAL, schwarz |
| Front hub: | SHIMANO "Deore HB-M5100", Center Lock, Schnellspanner |
| Rear hub: | ENVIOLO "TR", stepless, 6-hole |
| Front tires: | CONTINENTAL "eContact Plus", 62-406, Reflex |
| Rear tires: | CONTINENTAL "eContact Plus", 62-406, Reflex |
| Handle bar: | ergotec "Lady Town", 620 mm, Ø 31.8 mm, 30° backsweep |
| Stem: | BY.SCHULZ "Stem SDS", 1 1/8", 31.8 mm handlebar clamps, 70 mm long, angle 7°, black |
| Grips: | HERRMANS "Nucore Town", wave |
| Saddle: | Selle Royal "On", Moderate Wide |
| Seat post: | by,schulz "G.2 ST", Ø 34.9 mm, 400 mm long, 30 mm travel, 12 mm offset |
| Chain guard: | CURANA "C+", 55 teeth |
| Mud Guards: | curana "Apollo Orbit 70" |
| Carrier: | QIO "MIK HD 2.0" mit MIK STUDS |
| Front light: | Busch + Müller "Briq-S E", 60 Lux |
| Tail light: | Busch + Müller "Dart E Brex " |
| Battery Lock: | ABUS Akkuschloss |
| Kickstand: | URSUS "R78 - King Mini" |
| Pedals: | UNION "SP-153", foldable |
Technical data
| Category: | Compact bike |
| E-bike: | yes |
| Bosch Smart System: | yes |
| Drive system: | BOSCH Performance Line |
| Drive version: | middle motor |
| Battery capacity: | 545 Wh |
| Support: | till 25km/h |
| Sex: | unisex |
| Frame shape: | unisex |
| Frame height: | 48 cm |
| Wheel size: | 20" |
| Shifting type: | hub gear |
| Gears: | stepless |
| Circuit brand: | Enviolo |
| Shifting model: | TR |
| Brake system: | hydraulic disc brake |
| Features: | suspensed seat post, system carrier, deep entry, chain guard, electronic sliding aid, fender |
| Zulässiges Systemgewicht: | 180 kg |
| Material: | aluminium |
| Colour: | red |
| Colour designation: | imola red matt |
| Weight: | 27,30 kg |
| EAN | 4251971163973 |
5509
Geometry data "QIO EINS P-E unisex (2025)"
| Seat tube: | 48 mm |
| Toptube: | 576 mm |
| Steering tube angle: | 71° |
| Stem length: | 70 mm |
| Seat angle: | 71° |
| Kettenstrebe: | 451 mm |
| Steering tube: | 220 mm |
| Reach: | 408 mm |
| Stack: | 541 mm |
| Access height: | 182 mm |
| Passage width: | 190 mm |
| Wheel distance: | 1.108 mm |
| Length: | 1.685 mm |
